Packaging Systems

Flexiwrap Strip Folder(Laddi Folding & Flow wrapping)

With Nichrome’s new Secondary Packaging Solution – Flexiwrap Strip Folder, you can integrate with existing form fill seal / FFS machine to fold laddi/string, collate/bundle and flow wrap pouches in 1kg Distributor Packs / Retail Ready Packs.

Operation is as follows:

Automatic Laddi / String Folding
Automatic Collation / Bundling
Automatic flow wrapping

Features:

High speed laddi/ folding & wrapping for single & double head machine for 50 & 100gm
Easy changeover
Reduced Manpower Dependency
PLC controlled line
Digital LCD touch screen displaying & setting.
Safety enclosures with interlocks for moving parts

Applications

Spices

Tea

Coffee

Instant Mixes

Milk Powder

Neutracutical

POUCH FORMATS

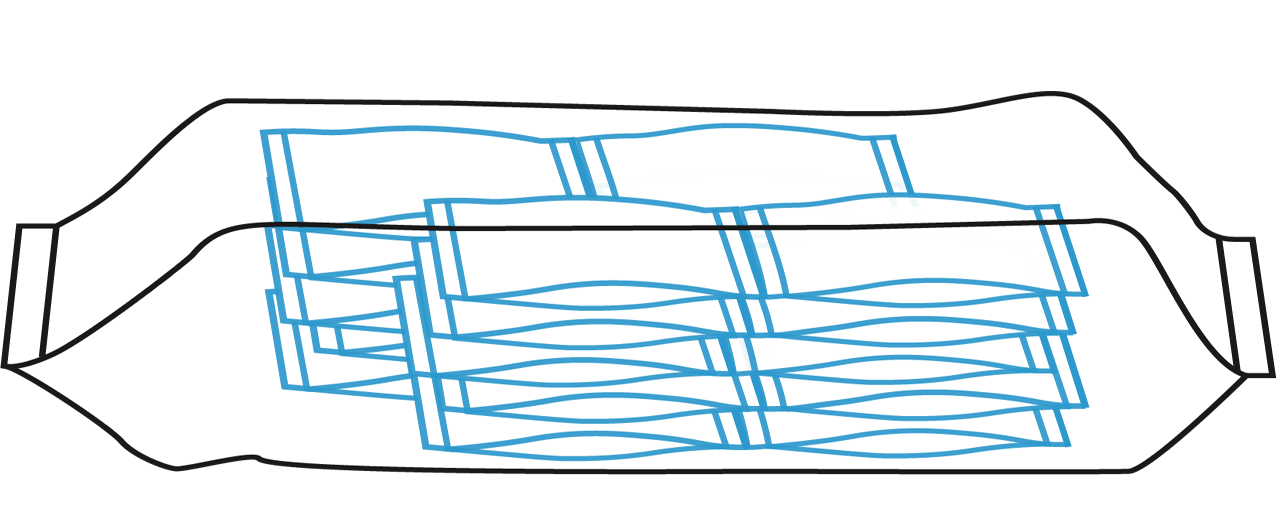

Secondary Pouch - Center Seal Pillow Pouch

Technical Specifications

Working Principle

Laddi/String of pouches from VFFS Machine (Single or Double head machine)
Folding each laddi/string
Collating 2 stacks together which are then automatically transferred into flow wrap machine
Bundle flow wrapped to form distributor packs or retail ready pack.

Feeding System

Manual Feeding
Automatic Feeding

Primary Machine Speed (VFFS)

80 bags/min

Standard Line Dimensions (LxWxH)

SKU (Laddi/String)	Matrix (No. Of pouches in Laddi X No. Of Laddis) = Total No. Of pouches in pack	Weight of Flow wrap pack / distributor pack
50gm	10 X 2 = 20	1Kg
100gm	5 X 2 = 10	1kg

Supply Voltage

415 V AC 3 Phase 50 Hz

Air Supply

8-12 CFM

Product Contact MOC

SS304

Allied Equipment

Printing
Labelling
HDPE Bag filling
Palletising
Overwrapping/ Stretch Banding/ Shrink Wrapping

End-to-End Solutions

Food

Pharma

Non Food
